  2. Telescopic Linear Ball Bearing Slide, Linear Rail, Telescopic Heavy Duty Slide, Industry Drawer Slide

A-LINE has developed straight track material for C & H cold-drawn and CNC cold rolling forming materials to manufacturing and ensuring that ball-roller bearing conform to the A-LINE design and high quality standards

A-LINE Telescopic Slide Have:

  • Increase loading capacity / cycle-time move strong
  • Continuous improvement and greatly increased the corrosion resistance effect
  • Easy assembly
  • Reduce costs and extend service and functional life

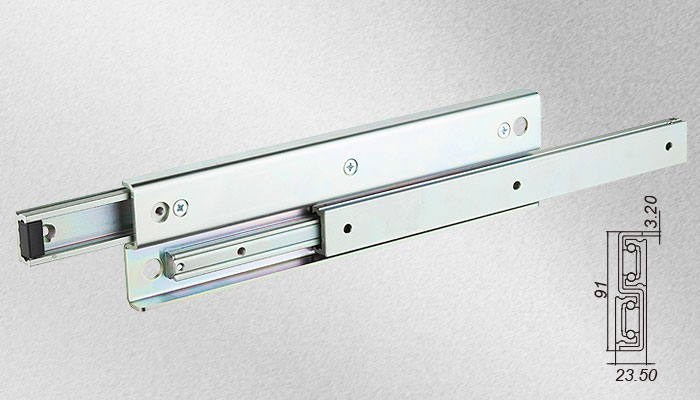

    • ATS23591B

    ATS23591B

    With Caged Ball Bearing & Self-Cleaning Ball Rail
    Guide Rails Made Of Cold-Drawn C40 - 50 Steel
    Load Capacity : 280 KGW
    Slide Travel : 100% Extension & Short Over Travel
    Slide Profile in “ Z “ Design & Two Way Travel
    High Corrosion Resistant Plating
    Size : 300mm – 1300mm
    Slide Mounted
    More Info (PDF File) You must use a password to open the file

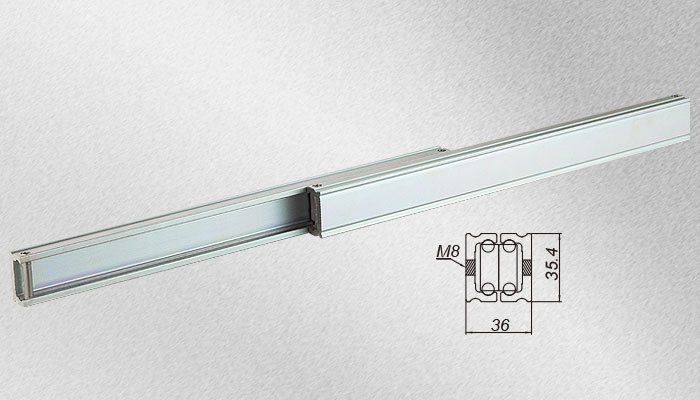

    ATS3635BTW

    ATS3635BTW (TWO-WAY)

    With Caged Ball Bearing & Self-Cleaning Ball Rail
    Guide Rails Made Of Cold-Drawn C40 - 50 Steel
    Load Capacity : 400 KGW
    Slide Travel : 100% Extension
    Customer Needs : Travel For 120% OR 150% Extension
    Two Way Travel
    High Corrosion Resistant Plating
    Size : 300mm – 1300mm
    Slide Mounted
    More Info (PDF File) You must use a password to open the file

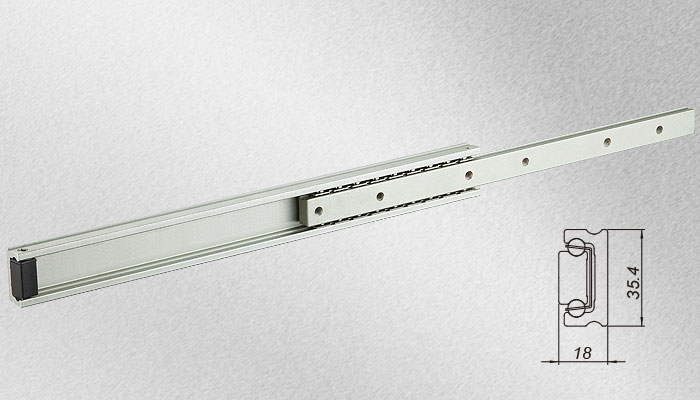

    ATS1835B

    ATS1835B

    With Caged Ball Bearing & Self-Cleaning Ball Rail
    Guide Rails Made Of Cold-Drawn C40 - 50 Steel
    Load Capacity : 200 KGW
    Slide Travel : 3/4 Extension
    Single one way Travel
    High Corrosion Resistant Plating
    Size : 300mm – 1300mm
    Slide Mounted
    More Info (PDF File) You must use a password to open the file

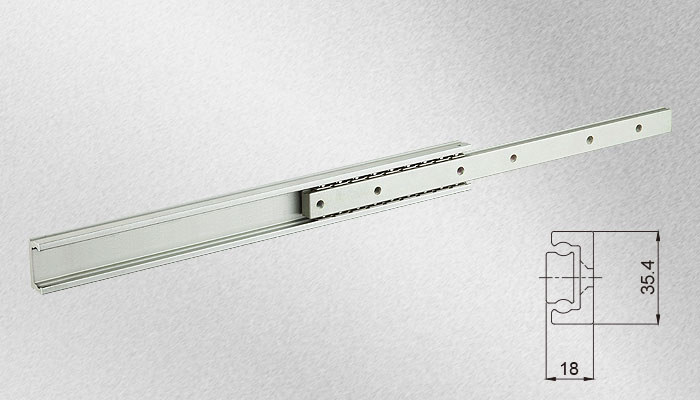

    ATS1835BTW

    ATS1835BTW (TWO-WAY)

    With Caged OF Ball Bearing & Self-Cleaning Ball Rail
    Guide Rails Made Of Cold-Drawn C40 -50 Steel
    Load Capacity : 180 KGW
    Slide Travel : 3/4 Extension
    Inner Member of External Two- Way Travel
    High Corrosion Resistant Plating
    Size : 300mm – 1300mm
    Slide Mounted
    More Info (PDF File) You must use a password to open the file

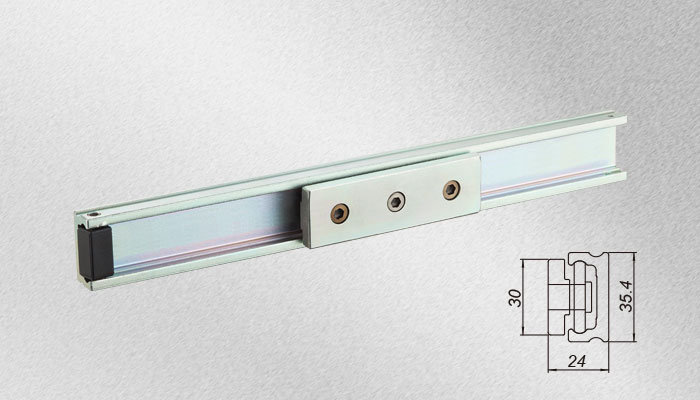

    ATS2435W

    ATS2435W

    With Caged Ball Bearing & Self-Cleaning Ball Rail
    Guide Rails Made Of Cold-Drawn C40 - 50 Steel
    Load Capacity : 3 Wheels For 180 KGW
    Slide Travel : 3/4 Extension
    Internal Single Way Travel
    High Corrosion Resistant Plating
    Size : 300mm – 1300mm
    Slide Mounted
    More Info (PDF File) You must use a password to open the file

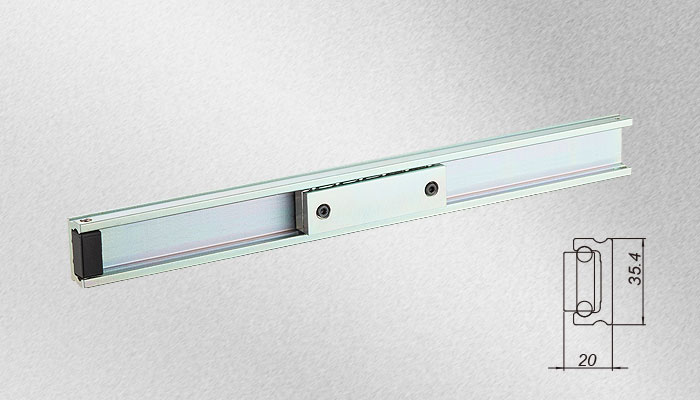

    ATS2035B

    ATS2035B

    Without Caged Ball Bearing & Self-Cleaning Ball Rail
    Guide Rails Made Of Cold-Drawn C40 - 50 Steel
    Load Capacity : 200 KGW / Long Service Life
    Slide Travel : 3/4 Extension
    Internal Single Way Travel
    High Corrosion Resistant Plating
    Size : 300mm – 1300mm
    Slide Mounted
    More Info (PDF File) You must use a password to open the file
