產 品
A-LINE研發了基於C ＆ H型 冷拉和CNC冷軋滾輪成型材的直線軌道素材，藉以確保符合A-LINE設計和高品質標準的滾珠滾輪軸。
富緯 線性滑軌具有:
1.增加負載/時刻移動強大。2.不斷的改善並且大大增加了耐腐蝕性。
3.組裝方便。
4.降低成本，延長使用壽命。

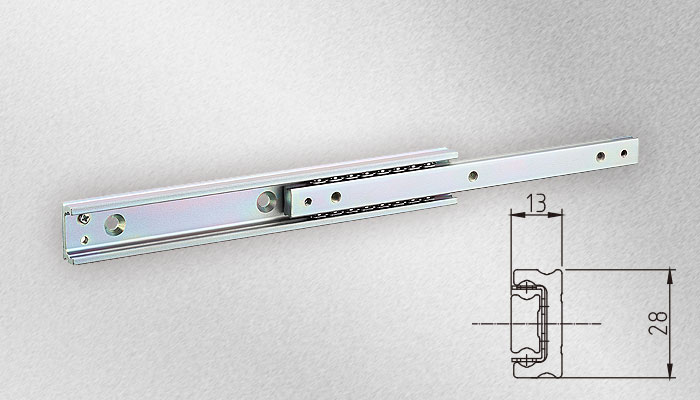

ATS1328BTW
With Ball Caged Of Bearing & Self-Cleaning Rail
Guide Rails Made Of Cold-Drawn C45 -50 Steel
Load Ratings : 150 – 200 KGW
Slide Travel : Partial Extension
Two Way Stroke
High Corrosion Resistant Zinc Plating
Size : 210mm – 1170mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

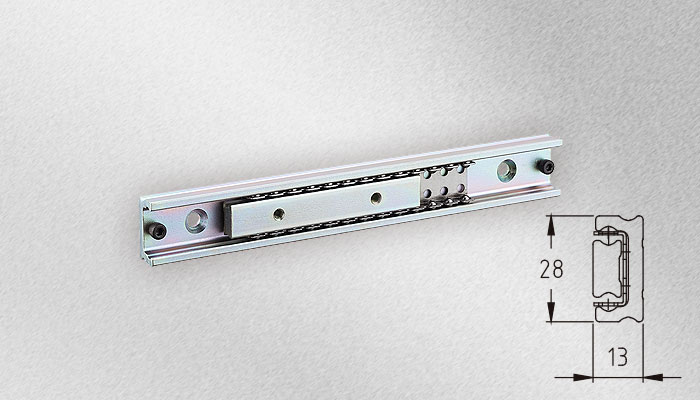

ATS1328SL
Linear Rails
Inner Member Of Slider
With Ball Caged Of Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C45 -50 Steel
Load Ratings : 100 - 150 KGW
Two Way Stroke
High Corrosion Resistant Zinc Plating
Size : 210mm – 1170mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

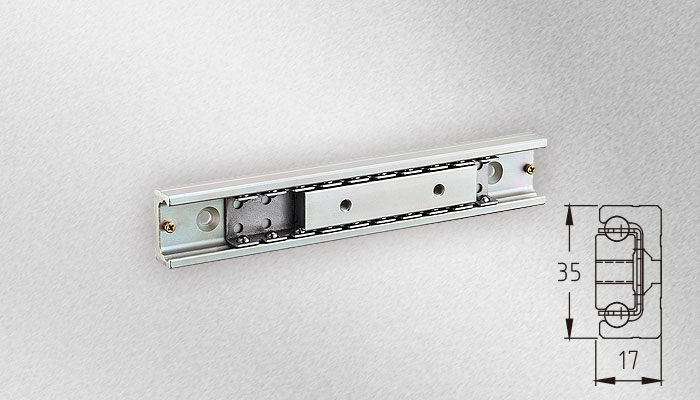

ATS1735SL
Linear Rails
Inner Member Of Slider
With Ball Caged Of Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C45 -50 Steel
Load Ratings : 150 – 200 KGW
Two Way Stroke
High Corrosion Resistant Zinc Plating
Size : 210mm – 1170mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

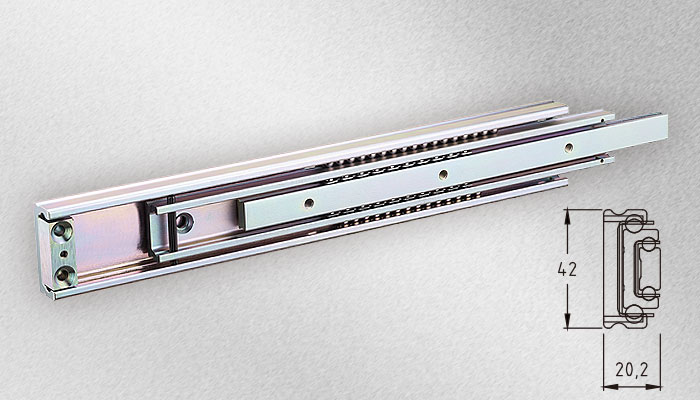

ATS2042B – Full Extension
With Ball Caged Of Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C45 -50 Steel
Load Ratings : 250 -300 KGW
Slide Travel : 100% Extension
High Corrosion Resistant Zinc Plating
Size : 250mm – 1300mm
Slide Mounted
More Info (PDF File) You must use a password to open the file
