產 品

A-LINE研發了基於C & H型 冷拉和CNC冷軋滾輪成型材的直線軌道素材,藉以確保符合A-LINE設計和高品質標準的滾珠滾輪軸。

富緯 線性滑軌具有:
1.增加負載/時刻移動強大。
2.不斷的改善並且大大增加了耐腐蝕性。
3.組裝方便。
4.降低成本,延長使用壽命。

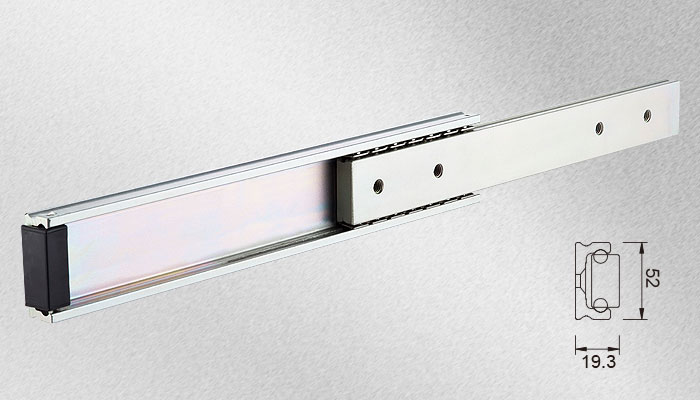

ATS19352B

ATS19352B

With Caged OF Ball Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C40 -50 Steel
Load Capacity : 250 KGW
Slide Travel : 3/4 Extension
Two way Travel
High Corrosion Resistant Plating
Size : 300mm – 1300mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

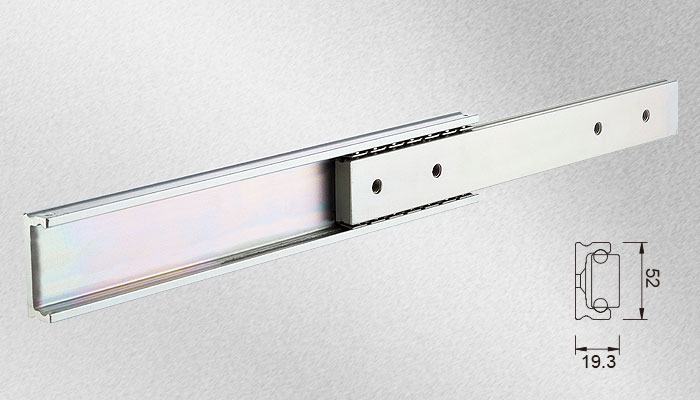

ATS19352BTW

ATS19352BTW (TWO-WAY)

With Caged OF Ball Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C40 -50 Steel
Load Capacity : 250 KGW
Slide Travel : 3/4 Extension
Single one way Travel
High Corrosion Resistant Plating
Size : 300mm – 1300mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

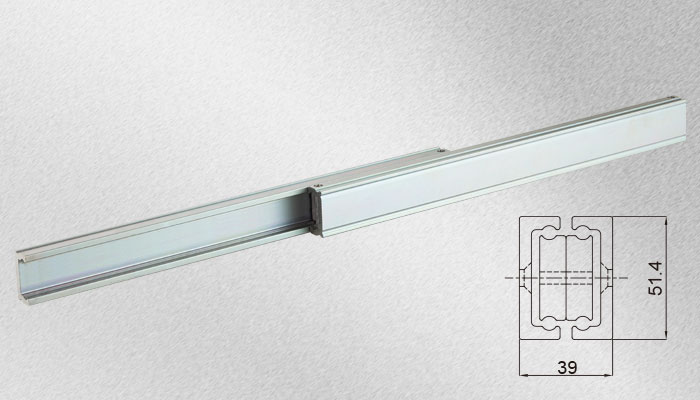

ATS3952BTW

ATS3952BTW (TWO-WAY)

With Caged OF Ball Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C40 -50 Steel
With Caged OF Ball Bearing & Self-Cleaning Ball Rail
Inner Member of External Two- Way Travel
High Corrosion Resistant Plating
Loading capacity : 500 KGW
Slide Travel : 100% Extension
Customer Needs : Travel For 120% OR 150% Extension
Size : 300mm – 1300mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

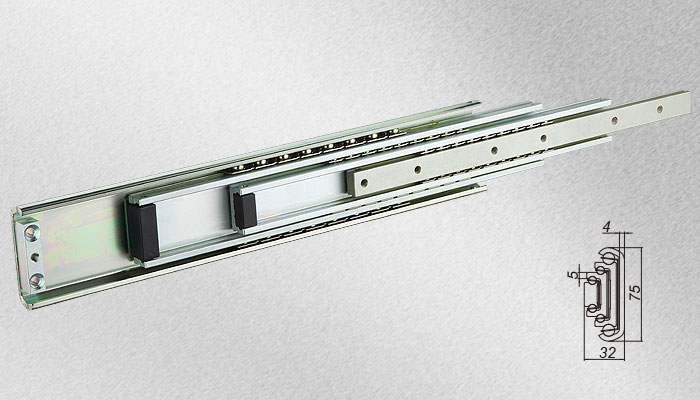

ATS3275B

ATS3275B

With Caged Ball Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C40 - 50 Steel
Load Capacity : 200 KGW
Slide Travel : 150% Extension & 4 Beams Rails
One Way Direction Travel
High Corrosion Resistant Plating
Size : 300mm – 1300mm
Slide Mounted
More Info (PDF File) You must use a password to open the file

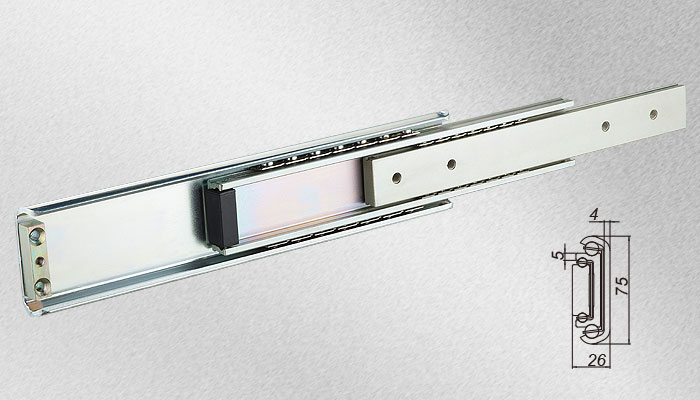

ATS2675B

ATS2675B

With Caged Ball Bearing & Self-Cleaning Ball Rail
Guide Rails Made Of Cold-Drawn C40 - 50 Steel
Load Capacity : 350 KGW
Slide Travel : 100% Full Extension & 3 Beams Rails
One Way Direction Travel
High Corrosion Resistant Plating
Size : 300mm – 1300mm
Slide Mounted
More Info (PDF File) You must use a password to open the file
